Key Features
Description
OBDSTAR iScan MV AGUSTA comes with one year update for free and support multi-languages. Support Automatic scanning, automatic VIN recognition, control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system, maintenance light reset, CO adjustment, idle speed adjustment, A/F value reset, ABS control unit setting, EOL mode, transmission memory reset, clear computer memory etc.

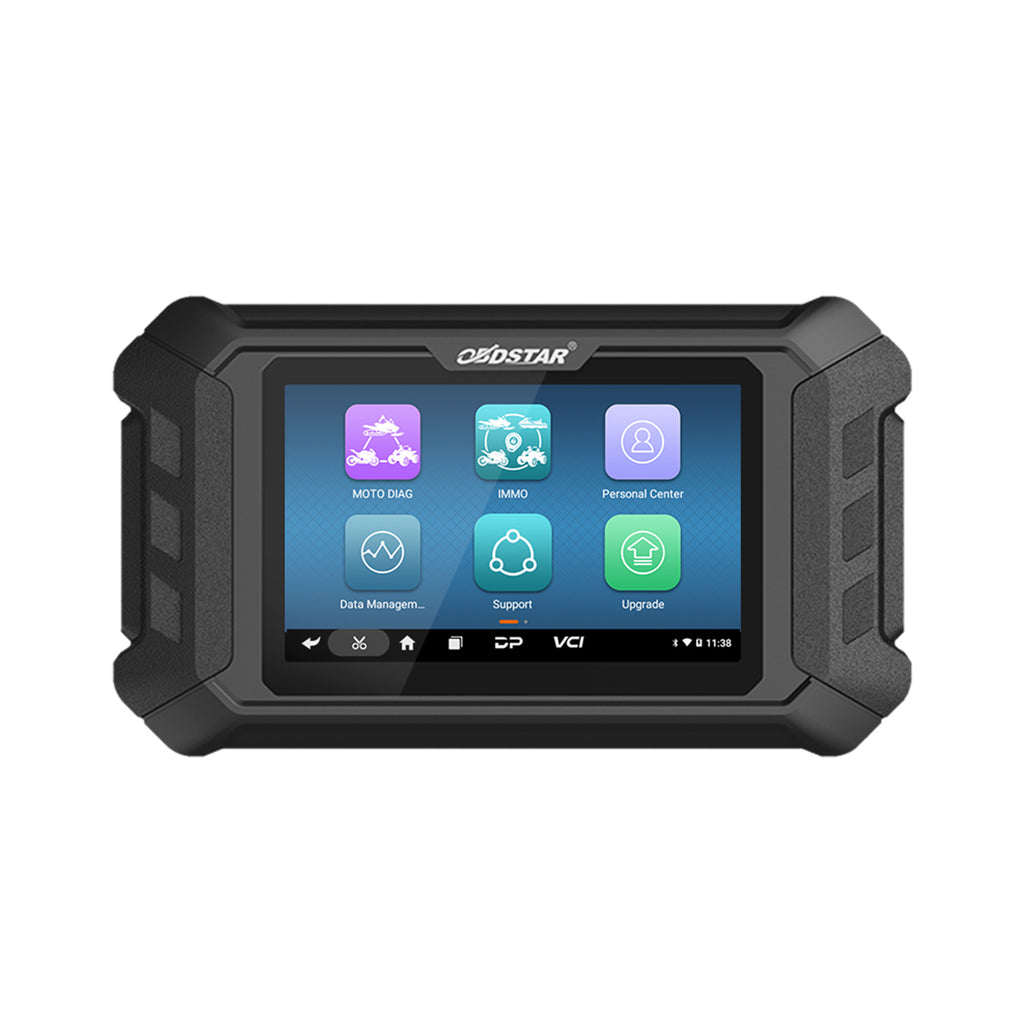

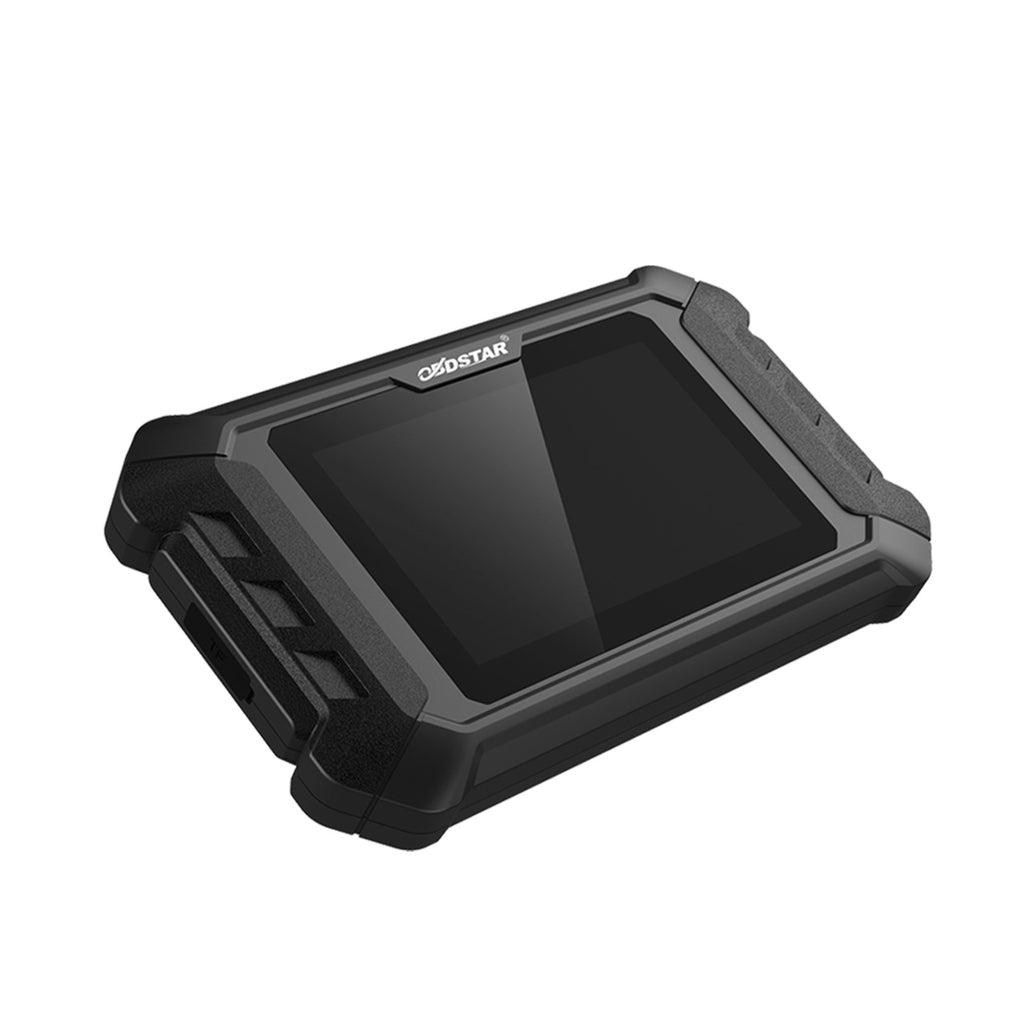

OBDSTAR iScan MV AGUSTA Motorcycle Diagnostic Scanner
Attention:
Unable to add other brand motorcycle softwares.
Please register the device before using.
OBDSTAR iScan MV Agusta Functions:
1. Provide complete diagnostic functions including code reading, code clearing, data flow, action test, setting, coding etc;
2. Record and play back real-time data flow, quickly and accurately locate sensor and component faults;
3. Support MV AGUSTA diagnosis
iScan MV AGUSTA Motorcycle Features:
1. New android 5.1.1 operation system;
2. Simple and intuitive menu guidance allows you to quickly master the equipment operation;
3. Provide complete diagnostic functions including code reading, code clearing, data flow, action test, setting, coding etc;
4. Menu arbitrary selection is more convenient and quick;
5. Record and play back real-time data flow, quickly and accurately locate sensor and component faults;
6. Wi-Fi connection to the internet, one-click software upgrade;
7. One-click remote function, OBDSTAR technical staff remote assistance.
8. One year updates for free online, after one year, it costs 80USD for updates per year.
9. Support multi-languages: English (EN), Spanish (ES), Portuguese (PT), French (FR), German (DE), Italian (IT),
(The default language is English, please register the device before changing language.
iScan MV AGUSTA Motorcycle Advanced Functions:
1. The first fault guidance, help data, technical bulletin, diag socket, etc. help you diagnose accurately and efficiently;
2. Diversified data flow display modes such as text, waveform diagram and instrument diagram, allowing you to easily analyze faults;
3. Automatic scanning, automatic VIN recognition, control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system, maintenance light reset, CO adjustment, idle speed adjustment, A/F value reset, ABS control unit setting, EOL mode, transmission memory reset, clear computer memory etc.
MV AGUSTA Functions Display
1) Main Page/Brand Supported
2) Help Data/Technical Bulletin
Advanced Functions:
1. The first fault guidance, help data, technical bulletin, diag socket etc help you diagnose accurately and efficiently;
2. Diversified data flow display modes such as text, waveform diagram and instrument diagram, allowing you to easily analyze faults;
3. Automatic scanning, automatic VIN recognition, control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system, maintenance light reset, CO adjustment, idle speed adjustment, A/F value reset, ABS control unit setting, EOL mode, transmission memory reset, clear computer memory etc.
Motorcycle/snowmobile/ATV/UTV Supported Series:
MV AGUSTA
Functions Display
1) Main Page/Brand Supported
2) Help Data/Technical Bulletin
3)Manual Service Function
4)Supported Systems List/Vehicles List
5) Diag Socket/Diag Connector Location
6) Special Function-MV AGUSTA
Product Specifications:
Operation system
Android 5.1.1
CPU
RK3128 quad-core ARM cortex A7
Battery
2600mA, rechargeable polymer lithium battery
Extension memory card
32G micro SD (TF) card supported
Storage capacity
16GB
LCD
5.0 inch
LCD resolution
800*480
Touch screen
Capacitive touch screen
Wifi
Supported
Working temperature
-20℃~55℃ (14℉~131℉)
Storage temperature
-20℃~70℃ (-4℉~158℉)
Weight
About 700g
Dimension
198mm*115*mm*31mm

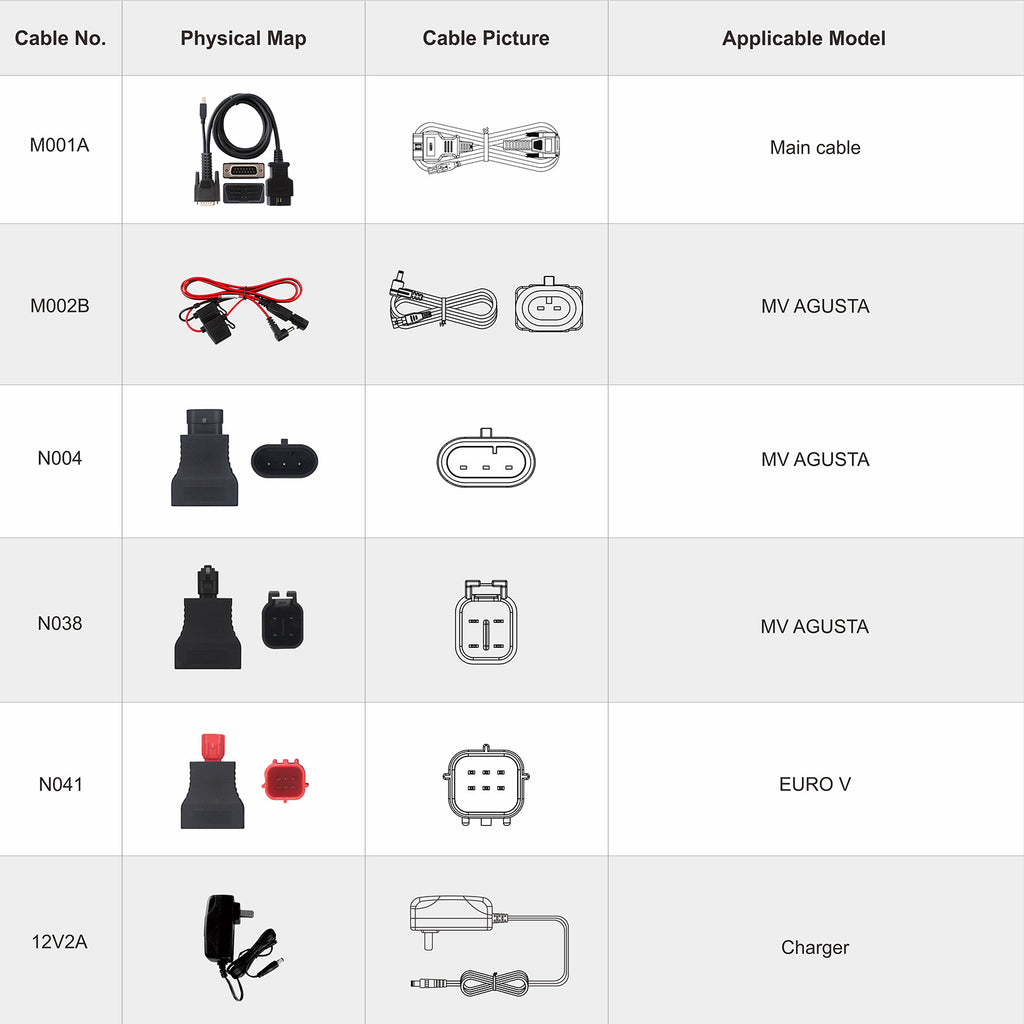

Package Includes:
1pc x M001A main cable
1pc x M002B MV AGUSTA power line
1pc x N004 MV AGUSTA adapter
1pc x N038 MV AGUSTA adapter
1pc x N041 EUROV adapter
1pc x 12V2A MV AGUSTA charger
Shipping Method and Delivery Time:US, Czech and UK Warehouse Shipping: 3-5 working days. Fast Delivery & Tax Free.DHL Shipping: 3-5 working days. Usually we declare a lower value on DHL invoice to help with customs clearance. If address belongs to remote area, customer will need to pay remote handling cost or we can change to ship by EMS. Please remember to leave message if you have any special requirement.Yanwen Express: 7-10 working days. No Tax or remote cost for European Countries.Standard Post: 7-15 working days. To South America and Africa countries it may take 20-25 working days. Customers can tick Express Shipping Service to ship by DHL.
