Description
Highlights:
1. Support 90% Toy-ota Le-xus (up to 2021) proximity smart key programming no need pincode.
2. 8A: DST-AES 88 A8 A9 AA
3. 4A: HITAG-AES
4. Covers All Functions of Toy-ota AKL License
5. Need to Work together with Lonsdor K518ISE or K518S, All key lost also require the LKE Emulator.
Lonsdor Super ADP 8A/4A Adapter Functions:
Backup immodata
Add key by OBD
All key lost
Delete key
Free password to program dealer key & Lonsdor FT specific key
Lonsdor Super ADP Supported List:
Toy-ota 8A
Camry/2013-2021, Highlander/2013-2021, Land Cruiser/2014-2021, Avalon HV/2019-2021, Prado/2014-2021, Crown/2015-2021, Alphard/2015-2021, Vellfire/2015-2021, Previa/2015-2021, C-HR/2018-2021,lzon/2018-2021, Wildlander/2018-2021, Rav4/2014-2021 Prius/2015-2021, Avalon/2019-2021, Corolla EX/2013-2019,Harrier/2021
Le-xus 8A
UX series/2018-2021, RX series/2013-2021, NX series/2017-2021, LS series/2013-2021, IS series/2013-2021, GS series/2013-2021, ES series/2013-2021
Toy-ota 4A
Livin/2021, Allion/2021, Corolla/2019-, Corolla HV/2019-2021 Levin/2019-, Levin HVI/2019-2021
How to connect Lonsdor ADP Adapter:
Locate the smart box.
Connect Lonsdor ADP 8A/4A Adapter to K518 series programmer interface.
Disconnect the interface between the smart box and the car, then connect the smart box and ADP adapter via the professional wire harness.
Connect ADP adapter to the OBD port of the vehicle.
Operation:
Lonsdor K518 key prgrammer Connect with WiFi, then you can do the following operations based on the tips on the K518 series machine.
1. Backup IMMO data
2. Generate emulator key AKL (8A/4A)
3. Add smart keys
4. Delete smart keys
Note: No need to generate Lonsdor LKE smart key emulator when adding smart keys. However, you must generate Lonsdor LKE smart key emulator when all your keys are lost.

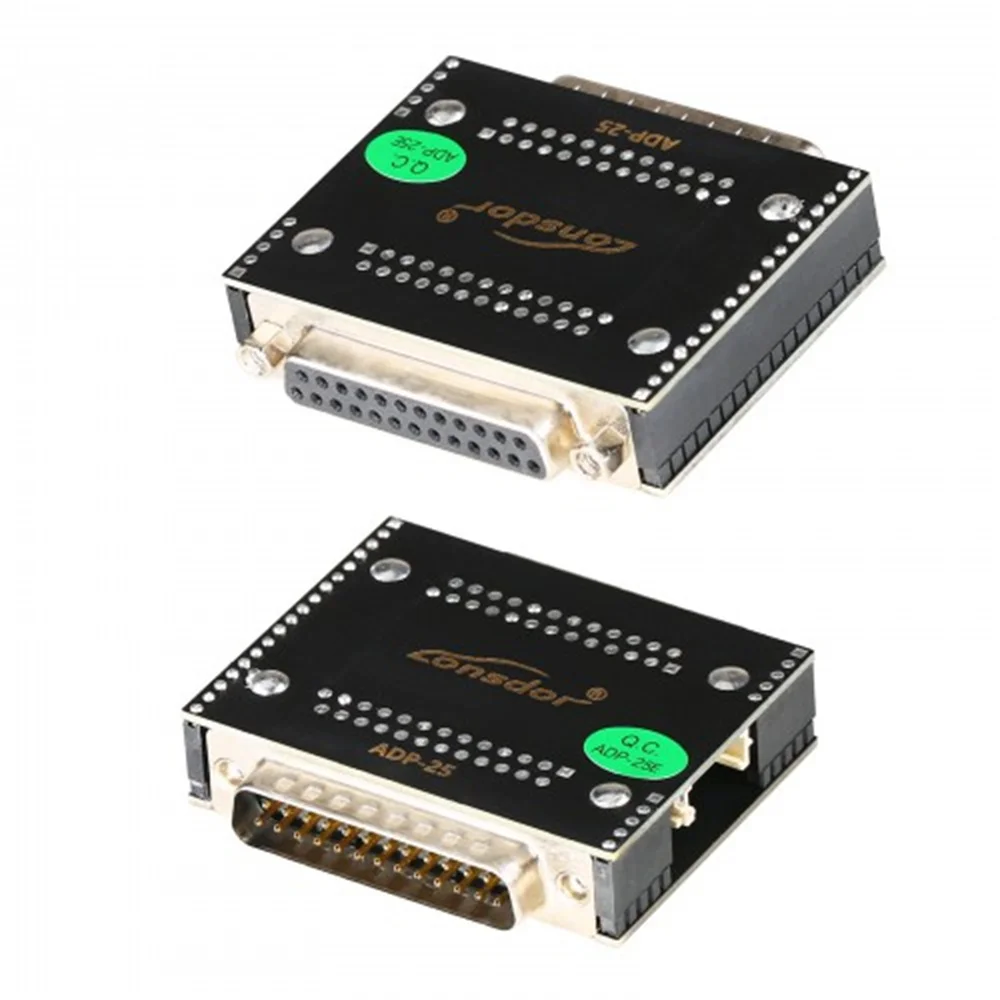

Lonsdor ADP Adapter Package:

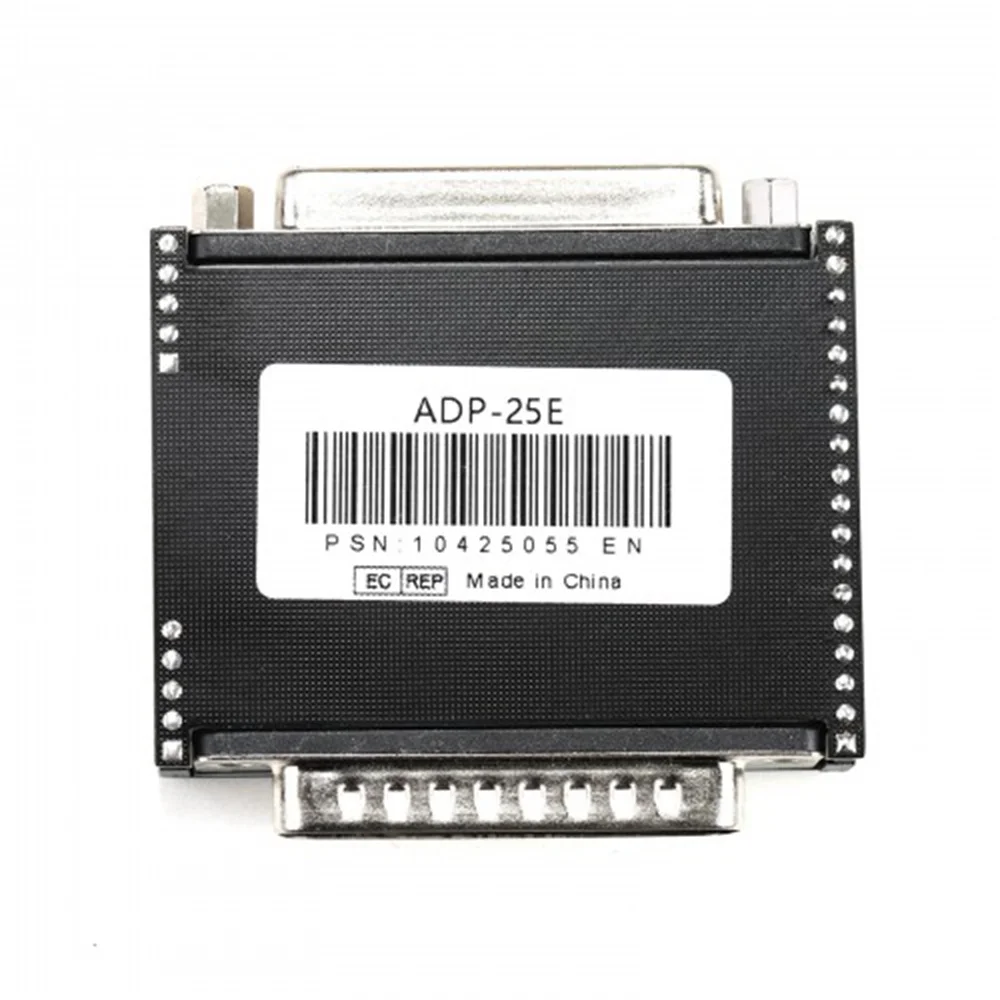

1. 1pc x ADP-25 adapter
2. 1pc x 27P cable
3. 1pc x 24P cable
Weight: 1.0KG

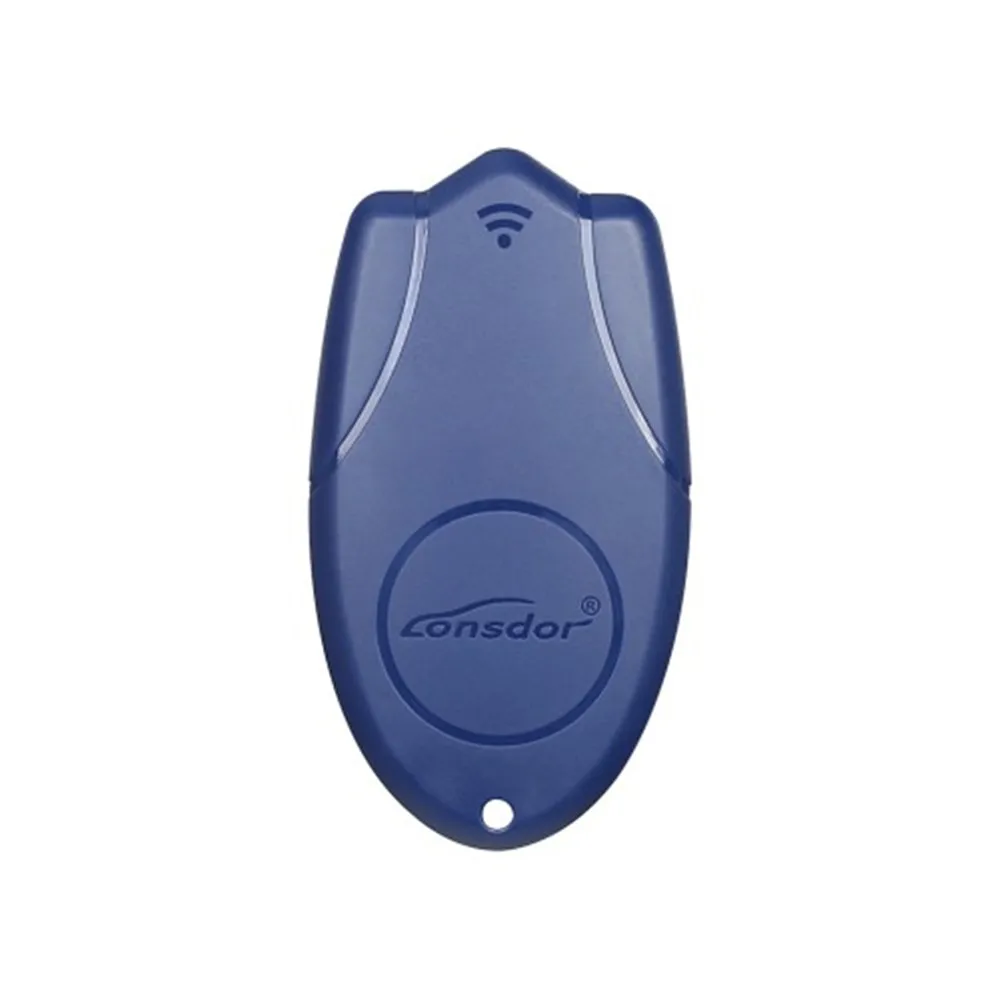

Lonsdor LKE Smart Key Emulator 5 in 1 for Lonsdor K518 Key Programmer
Lonsdor LKE Smart Key Emulator=SKE-LT Smart Key Emulator 4pcs+ SKE-LT-DSTAES 128 Bit Smart Key Emulator 1pc
Features of Toyo-ta/Lex-us smart key all lost(5 emulators-in-1):
Dismantle-free
No need networking
Localized computing
Generate chip:
LKE can be used to work as an emergency key to program when no dedicated chip.
Copy chip
By collecting data to decode and copy chip, LKE currently supports some 46 and 4D chip copy.
Simulate and convert chip
Use [Generate chip] to make various chips, part of 4D/46 and SKE Toyota currently supported.
Decode chip
Decode 46 and 4D chips to obtain SK.
Identify ignition coil and key chip type(all key lost)
As K518 helper:
1. Toy-ota/Le-xus smart key programming via OBD for all key lost; Support “94/4D, 98/39(128 bit), 88/A8, A9” smart key offline programming via OBD
2. Chip generation; Generate emergency key to start the car when the dedicated chip is not available
3. Chip copy; Copy chip via collect and decode chip data (Cover wide range of vehicle models, faster)
4. Chip simulation and conversion; Generate various kinds of chip in urgent situation
5. Chip decode; Support code calculation for most 46 smart key and blade key (include 4D)
6. Identify the working statue of the ignition coil and the type of key chip (Support all key lost)
7. Work with K518 to program Hy-undai/K-ia without PIN code
8. Work with K518 to program BYD without PIN code
9. Work with K518 to program Pors-che Cayman, Boxster without PIN code
10. Work with K518 to program Mitsu-bishi (46/47) all key lost via OBD

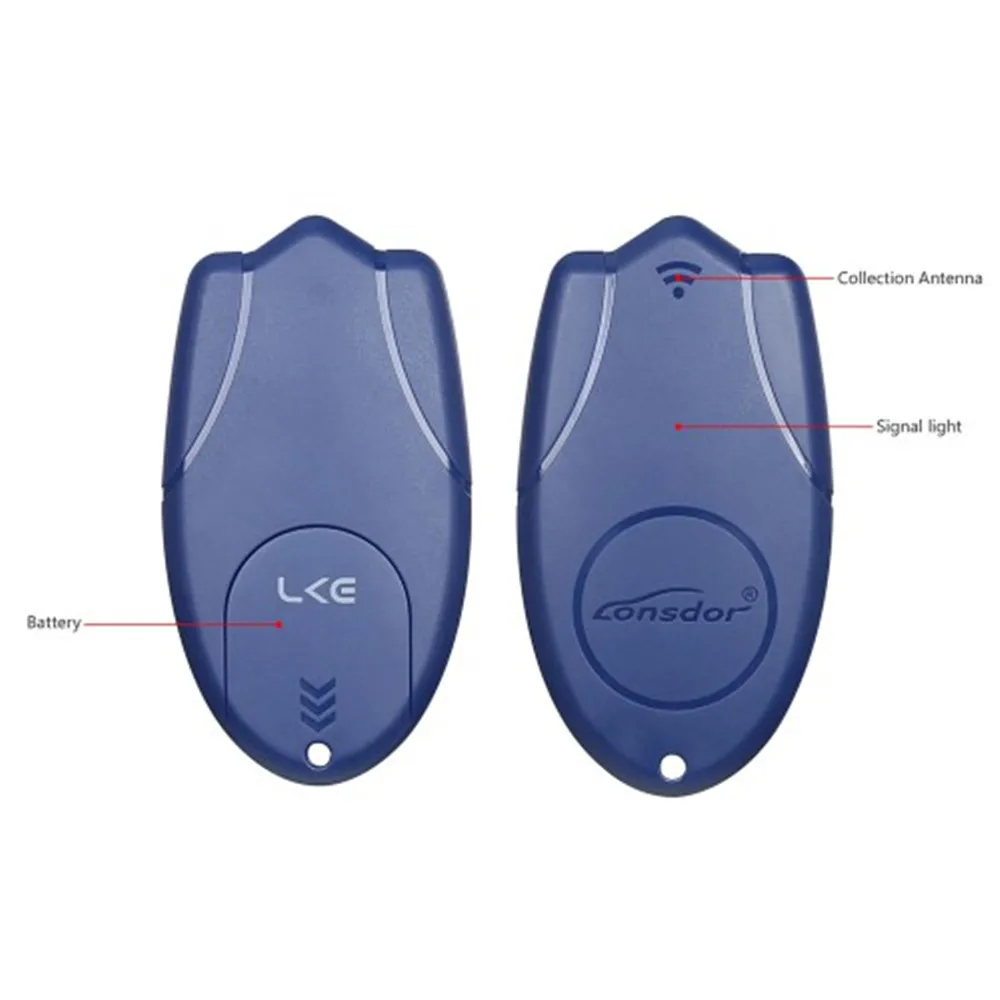

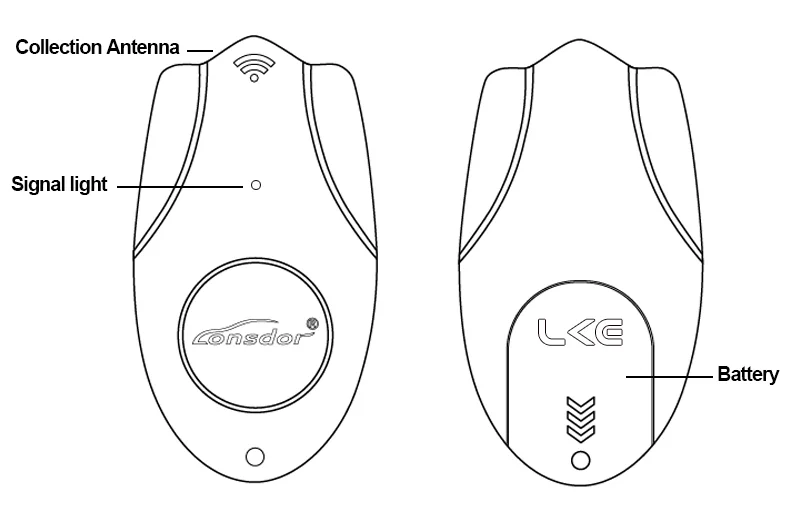

Collection Antenna:place one end of antenna into K518 card slot to operate.
Signal light:State ① start to work. (the light will go on)
State ② collecting...( the light will flash)
State ③ finished. ( the light will go out after 3 secs)
Battery:standard CR2032
2.Product functions
(1)Simulate key chip
Boot K518 device, place LKE into K518 card slot, go to "Special function" in the menu interface and choose "Analog chip->Generate analog chip" to generate 46 and 4D chip, then you can generate various car key chip according to demand, for example, 46 chip can be used to generate key chip for vehicle models like Great wall motor, Zotye auto, Geely and etc; 4D chip can be used to generate key chip for Toyota, Lexus, Subaru and etc.
(2) Collect data
This function is currently used to collect data to decode chip, and can copy original car chip data after chip is decoded. Boot K518 device, place LKE into the card slot, go to "Special function" in the menu interface and choose "Decode chip", you can decode different types of chip.
(3) Detect ignition coil fault and chip type
Boot K518 device, place LKE into the card slot, go to "Special function" in the menu interface and choose "Ignition coil->Detect ignition coil " to detect whether the coil is normal and identify chip type.
(4) Upgrade functions
Boot K518 device, place LKE into the card slot, in the interface of "Special function", click function icon, the system will notify whether to update, click OK to upgrade online directly.
3. Instructions for use
Boot K518 device, click "Special function" icon and choose corresponding functions (such as Identify© chip, Analog chip, Decode chip, Ignition coil) and operate as per system prompts. When it starts to work, signal light will go on; when at work, the light will flash; when finish work, the light will go out after 3 secs.
4.Specifications
(1) Device size: 68mmX37mmX11mm
(2) Battery: CR2032
(3) Standby current: 3.5ua
(4) Working current: ≤4ma
Package includes:
1pc x LKE car key emulator
